Microlab 300

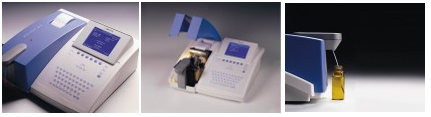

The Microlab 300 is a true semi-automated clinical chemistry analyzer in all its glory. A system that is designed as a clinical chemistry analyzer and not as a standard photometer. Thousands of users have experienced the proven reliability and high performance of the Microlab all over the world. Robust, compact and easy-to-use, it is ideal for smaller or satellite laboratory locations. Together with a superior menu of ready-to-use, liquid-stable reagents, the Microlab 300 covers primary, STAT or back-up testing needs. This system offers minimal maintenance and effective use of consumables to provide a truly cost effective operation.

Lumax CLIA Analyzer

Description	Lumax CLIA Analyzer
Detector	Photo-Multiplier Tube (PMT)
Programming	40 plus paramaters including Hormones, Cancer & Cardiac Markers, Steroids, Drugs, Infectious Diseases, other Biochemical Markers
Ease of Use	Simple operation & convenience with out-of-box installation

Microlab 300 Details

· Semi-automated clinical chemistry analyzer

· 60 programmable tests

· Broad test menu

· Full size screen and qwerty keyboard

· No warm up time

· Easy-to-train, operate and maintain

· Bi-directional host connection

· Up to 12 programmable wavelengths

Processing Center

· Optimized test environment ensures accurate results

· Measurement takes place in a specially designed patented flowcell

· Superior optical design

· Temperature controlled, 37°C

· Easy-to-train, operate and maintain

· Interactive and intuitive testing

· Built in printer

· Built in quality control

· Low maintenance required

· Cover designed for maintenance purposes

· Easy paper roll or parts replacement

· Low volumes

· Minimal water consumption

· 30 µL measuring volume

· Password protection

Operator Interface

Easy-to-use

The simplicity of the software allows a skilled technician to operate the Microlab 300 within an hour. Interactive and intuitive routines lead the operator to the results quickly. The system maintenance instructions are integrated in the software.

Onboard Quality Control

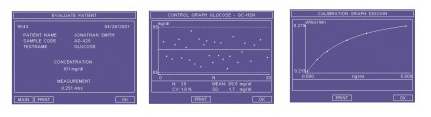

QC results are stored in memory and are easily displayed on the screen. The software calculates the mean, standard deviation and coefficient of variation.

Patient Results

Retrieval of results becomes even simpler with the Microlab 300. A special evaluate patient menu gives the possibility to retrieve measured data very easily. Up to 100 patient result reports are automatically stored.

Specifications

Light Source	Quartz-iodine lamp 12V-20W.
Wavelength Range	- Optical unit with 12 position filter wheel - 340, 405, 505, 546, 578, 620 nm standard installed - 6 positions for optional filters.
Photometric Range	-0.1 to 2.3 Absorbance Resolution 0.001 Abs.
Detector	Photo diode (320-1000 nm).
Blanking	Automatic zero setting.
Operator Interface	- Membrane keyboard, for direct function and alpha-numeric entry - Optional external keyboard - High contrast graphical LCD display - Real time clock, 24 hours system.
Measurement Procedures	- Kinetic measurement with linearity check - Kinetic, with linearity check and sample slope blank - Two point kinetic, with or without reagent blank - End point, with or without reagent blank - Bichromatic end point, with or without reagent blank - End point, with sample blank and with or without reagent blank.
Multiple Testing	- Up to nine replicates - Means, SD and CV.
Measurement Time	- Programmable, 2 to 998 seconds for kinetic and two point type of tests - For end point fixed at 2 seconds.
Delay Time	Programmable, 0 to 999 seconds.
Parameter Setting	- Method name - Measurement mode - Wavelength 1 and 2 - Aspiration volume - Measurement delay - Measurement time - Factor - Concentration standards - Reagent blank y/n - Sample blank y/n - Units for results - Levels for flagging - Curve fit y/n - Linearity check.
Calibration	- Factor, one-point, two-point and multi-point - Automatic on 1 standard (linear mode) - Automatic on up to 10 standards (non-linear mode).
Quality Control	- Two controls per test - QC survey of last 30 control measurements - Levey Jenning plot - High/low flags.
Flowcell	Metal, with quartz windows, measuring volume 30 µL.
Temperature Control	- By means of Peltier elements - Fixed temperature at 37°C.
Aspirator System	- Internal pump of bellows type, driven by stepper motor: - Back panel connection for waste - Aspiration volume programmable.
Printer	- Internal matrix printer - Normal paper - External printer port available.
Signal Interface	- Centronics type parallel port - RS 232 type serial port - PS 2 type port for external keyboard.
Standards and Regulations	- CE -IVD - CB - UL.
Dimensions and Power Requirements	- 40 x 17 x 36,6 cm (W x H x D) - Weight: 8,5 kg. - 100-240 VAC nominal, 50/60 Hz - Battery back-up to retain data

Photometer 5010 V5+

Semi-automated single-beam filter photometer with flow-through cell

TECHNICAL SPECIFICATIONS
Type	Semi-automatic, single-beam filter photometer
Light Source	Halogen lamp – 12 V, 20 W with protection for lifetime
Wavelength	340 nm – 800 nm
Wavelength Selection	Automatic via 9-position filter wheel : 6 standard interference filters: 340 nm, 405 nm, 492 nm, 546 nm, 578 nm and 623 nm; 3 positions for optional filter of choice
Photometric Range	0 – 2.5 A
Cuvette System	Micro flow cell: 32 µl, 10 mm light path interchangeable with normal standard cuvettes (macro or semi-micro, disposable or special optical glass)
Temperature Control	Internal Peltier element, temperature variable, pre-adjusted to 25 °C, 30 °C and 37 °C Equilibration time for aspirated reaction mixture to reach 37 °C from ambient temperature: 15 sec
Aspiration System	Built-in peristaltic pump driven by stepper motor, programmable aspiration volume controlled by infrared light barrier
Sipping Volume	Minimum 250 µl, typically 500 µl up to 2000 µl Separate setting of aspirate volume and wash volume
Operator Interface	Touchscreen for direct functions and alphanumerical inputs
Data Presentation	Graphic display: white characters or symbols, blue backlight, dimension 240 * 128 dots
Integrated Printer	Thermal printer, 24 characters per line
Languages	English and French / German / Indonesian / Russian / Spanish
Memory	General operating software can be updated by PC Reagent open system with capacity for up to 231 programmable methods Import of data by touchscreen or PC Up to 50 non-linear calibration curves with max 20 sets of points can be stored
Data Logging	Up to 1000 results can be saved in the memory
Signal Port	Serial port for connection to an external printer and/or PC
Measurement Procedures	Absorbance End Point with factor, standard or multiple standards, with or without reagent blank and/or sample blank Bichromatic end point Kinetics with standard, factor or multiple standards, with or without blank Fixed time with standard, factor or multiple standards, with or without reagent blank Turbidimetry Single, double and triple determinations Curve fitting for non-linear standard curves Free hemoglobin in combination with optional interference filters
Quality control	Up to 50 methods can be controlled with two control sera Levey Jennings plot
Measuring Time	Kinetic: variable from 5 – 19 deltas, time per delta 4 – 255 sec in 1 sec steps Fixed time: variable from 0 – 1800 sec in 1 sec steps
Delay Time	Programmable from 0 – 1800 sec in 1 sec steps
Mains Supply	Range: 100 VAC up to 264 VAC at 50/60 Hz
Dimensions	Length 33 cm x width 34 cm x height 18 cm
Weight	5,3 kg
